1500W YASKAWA servo motor
TubesT nesting software

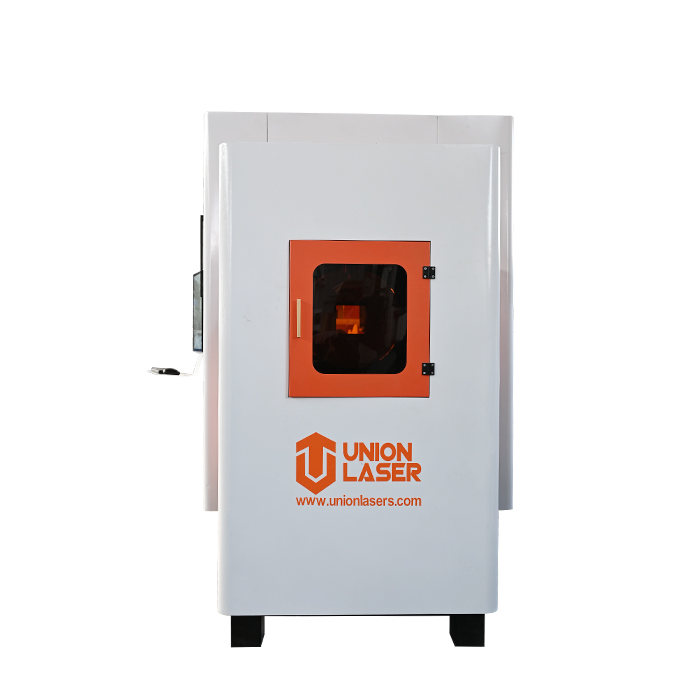

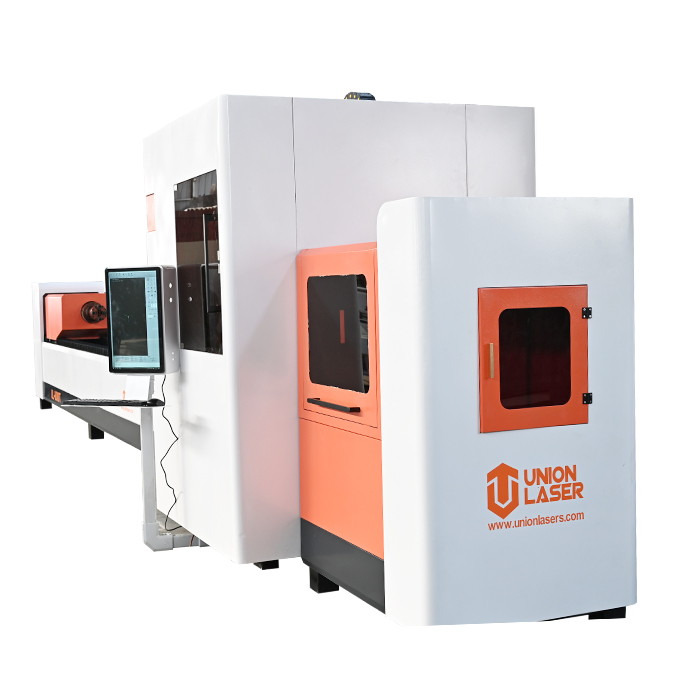

Features for tube laser cutting machine
*The two-way pneumatic chuck tube automatically locates the center, extends the transmission structure to improve stable operation,and increases the jaws to save materials.
*The ingenious separation of the feeding area, the unloading area and the pipe cutting area is realized, which reduces the mutual interference of different areas, and the production environment is safe and stable.
*The unique industrial structure design gives it maximum stability and higher vibration resistance and damping quality. The compact spacing of 650mm ensures the agility of the chuck and the stability during high-speed driving.
*Movement repeatability accuracy ±0.01mm Base reference parallelism≤±0.02mm.
*Fixing the pipe effectively solves the deformation problem in the cutting operation of the long pipe.

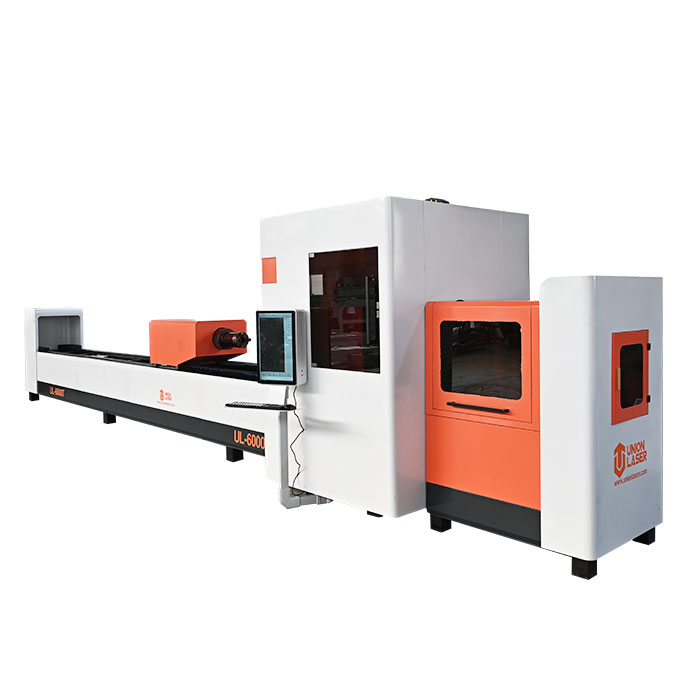

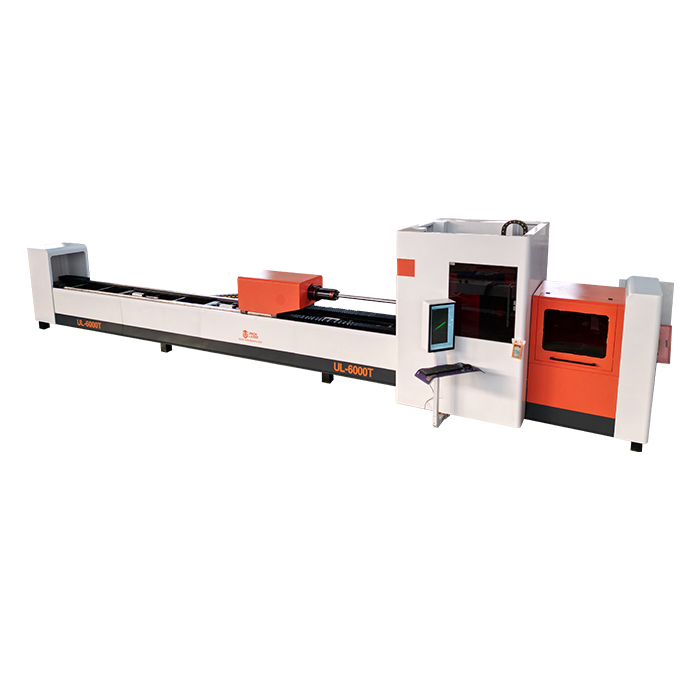

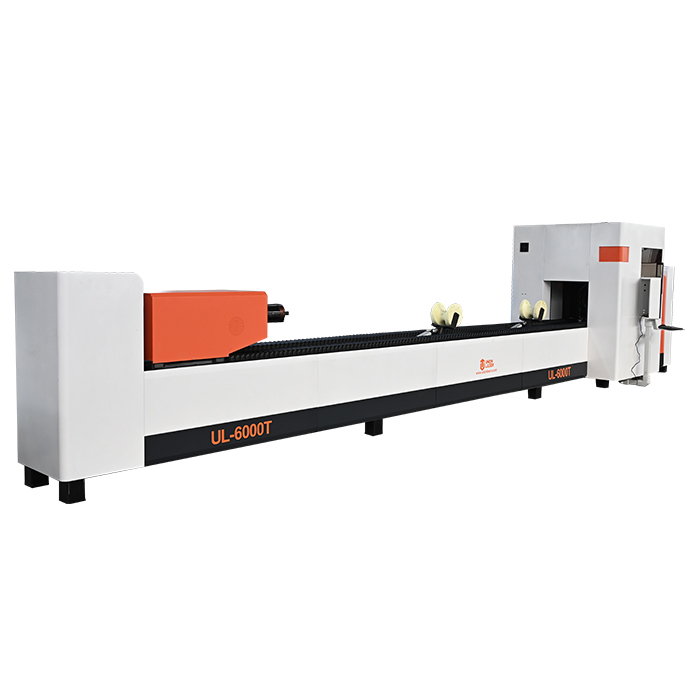

Parameter for tube laser cutting machine
Model
|
UL-6000T
|
Cutting Area
|
6000mm length, 150mm diameter
|
Laser Power
|
1500w, 2000w, 3000w, 4000w, 6000w, 120000w
|
Laser Type
|
Raycus fiber laser source(IPG/MAX for option)
|
Cutting Speed
|
0-40000mm/min
|
Max Travelling Speed
|
120m/min,Acc=1.2G
|
Power Supply
|
380v, 50hz/60hz, 50A
|
Laser Wave Length
|
1064nm
|
Minimum Line Width
|
0.02mm
|
Rack System
|
made in Germany
|
Chain System
|
Igus made in Germany
|
Graphic Format Support
|
AI,PLT,DXF,BMP,DST,IGES
|
Driving System
|
Japanese Fuji Servo motor
|
Working Table
|
Sawtooth
|
Auxiliary Gas
|
Oxygen, nitrogen, air
|
Cooling Mode
|
Water cooling and protection system
|
Optional Spare Parts
|
rotary system
|
Machine Weight
|
2000-3000kgs
|
