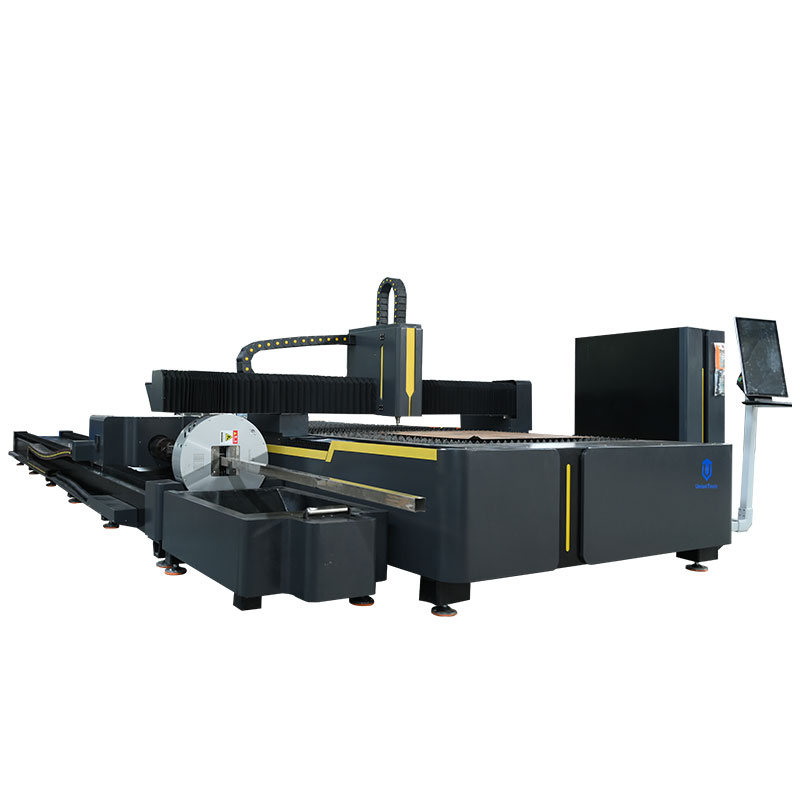

Square tube and plate fiber laser cutting
2000w laser source
Au3tech control system
Features for fiber metal laser cutting machine
1.Metal Tube and Plate Dual Use
In order to meet the increasingly complex needs of consumers, Gweike is targeted at market demand, independently developed LF3015CR sheet and pipe integrated laser fiber cutting machine, one machine dual purpose, this machine solves double cutting needs by one time.

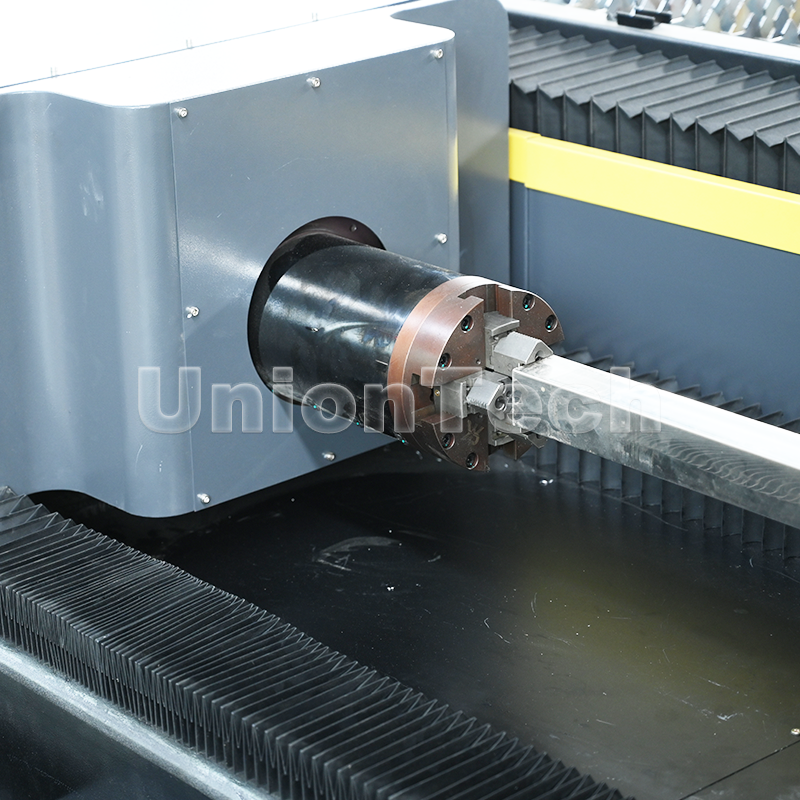

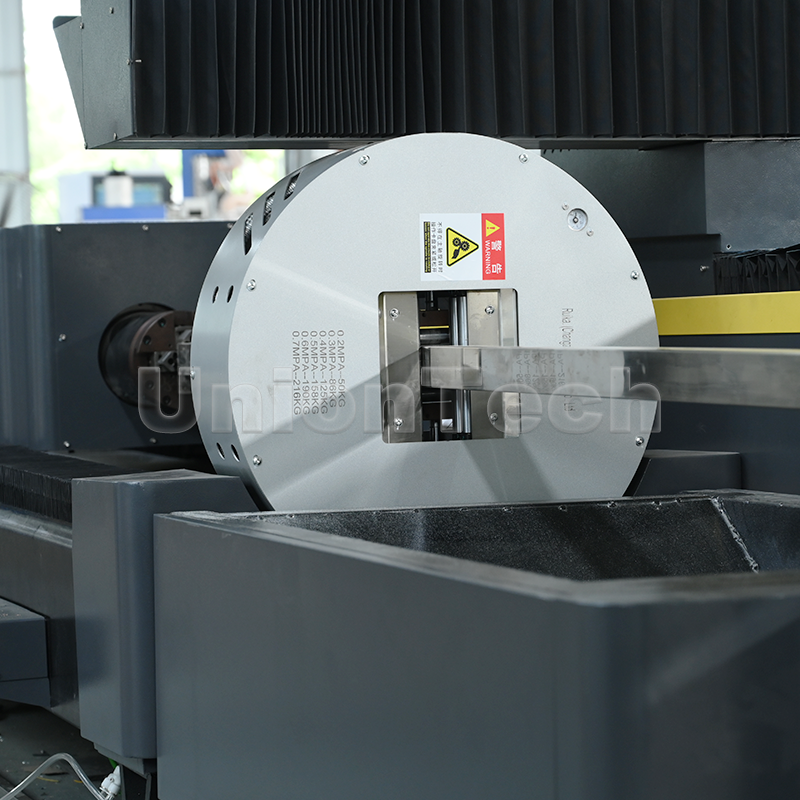

2.Clamp Design
It adopts an electric clamp design on both sides and it can modulate the center automatically. The diagonal adjustable range is 20-200mm.
3.Exchanging Platform
It adopts an up and down exchange platform, and the converter is responsible for controlling the exchanging motor.
The machine is able to finish the platform exchanging within 15s.
4.3rd Generation Aviation Aluminum Gantry
It is manufactured with aerospace standards and formed by 4300 tons press extrusion molding. After aging treatment, its strength can reach 6061 T6 which is the strongest strength of all gantries. Aviation aluminum has many advantages, such as good toughness, light weight, corrosion resistance, anti-oxidation, low density, and greatly increase the processing speed.
5.Dual Use and Cost-saving
LF3015GCR fiber laser cutting machine can not only cut metal plates, but also metal pipes. It has many uses and can save the space of more than 50%, which effectively improve productivity.
6.Fractional Automatic Support Installation
It employs intelligent tube support design, which can solve the deformation problems in the process of long tube cutting.
Parameter of tube and plate fiber laser cutting machine
Model
|
UT1530FT
|
UT2040FT
|
UT2560FT
|
Working area
|
1515*3030mm
|
2020*4040mm
|
2525*6050mm
|
Positioning accuracy
|
±0.03mm
|
±0.03mm
|
±0.03mm
|
Repositioning accuracy
|
±0.02mm
|
±0.02mm
|
±0.02mm
|
Max. acceleration
|
1.5G
|
1.5G
|
1.5G
|
Laser power
|
1kW – 4kW
|
1kW – 4kW
|
1kW – 4kW
|
Max. running speed
|
140m/min
|
140m/min
|
140m/min
|
Focusing method
|
Auto/manual
|
Auto/manual
|
Auto/manual
|
