12000W fiber laser source
Yaskawa servo motor & driver

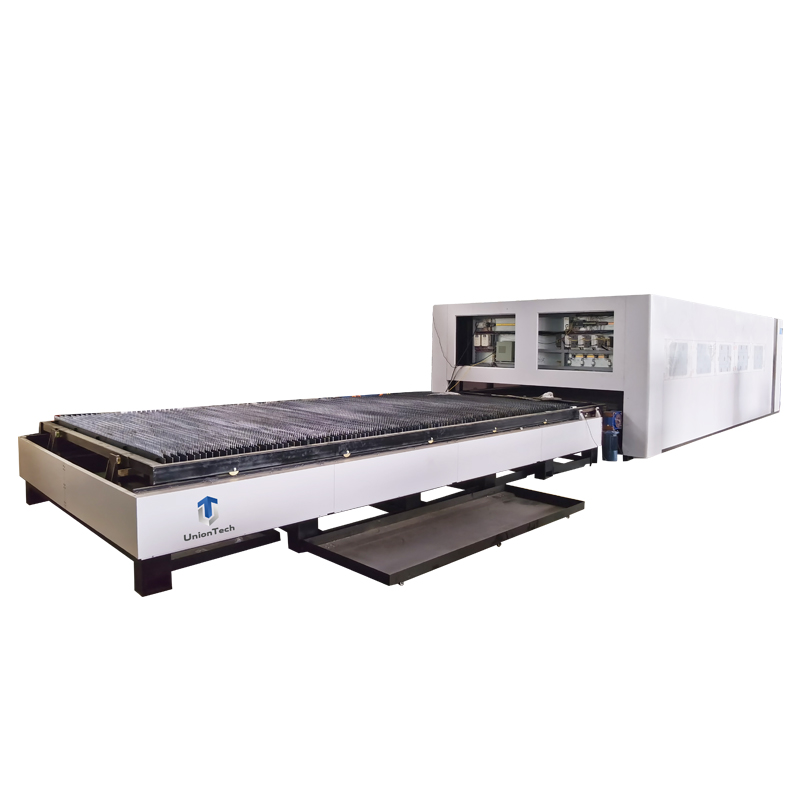

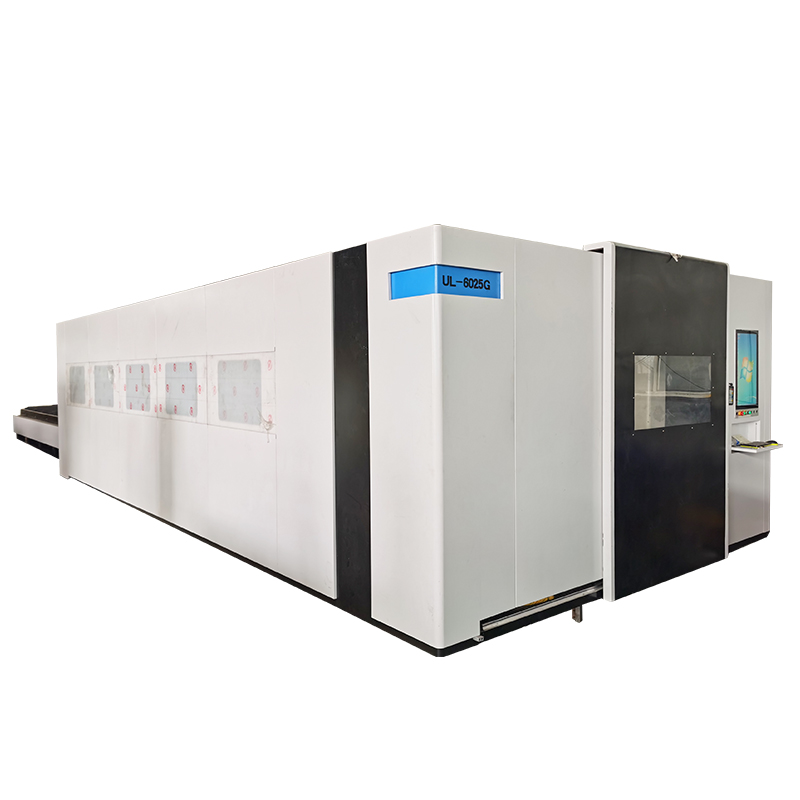

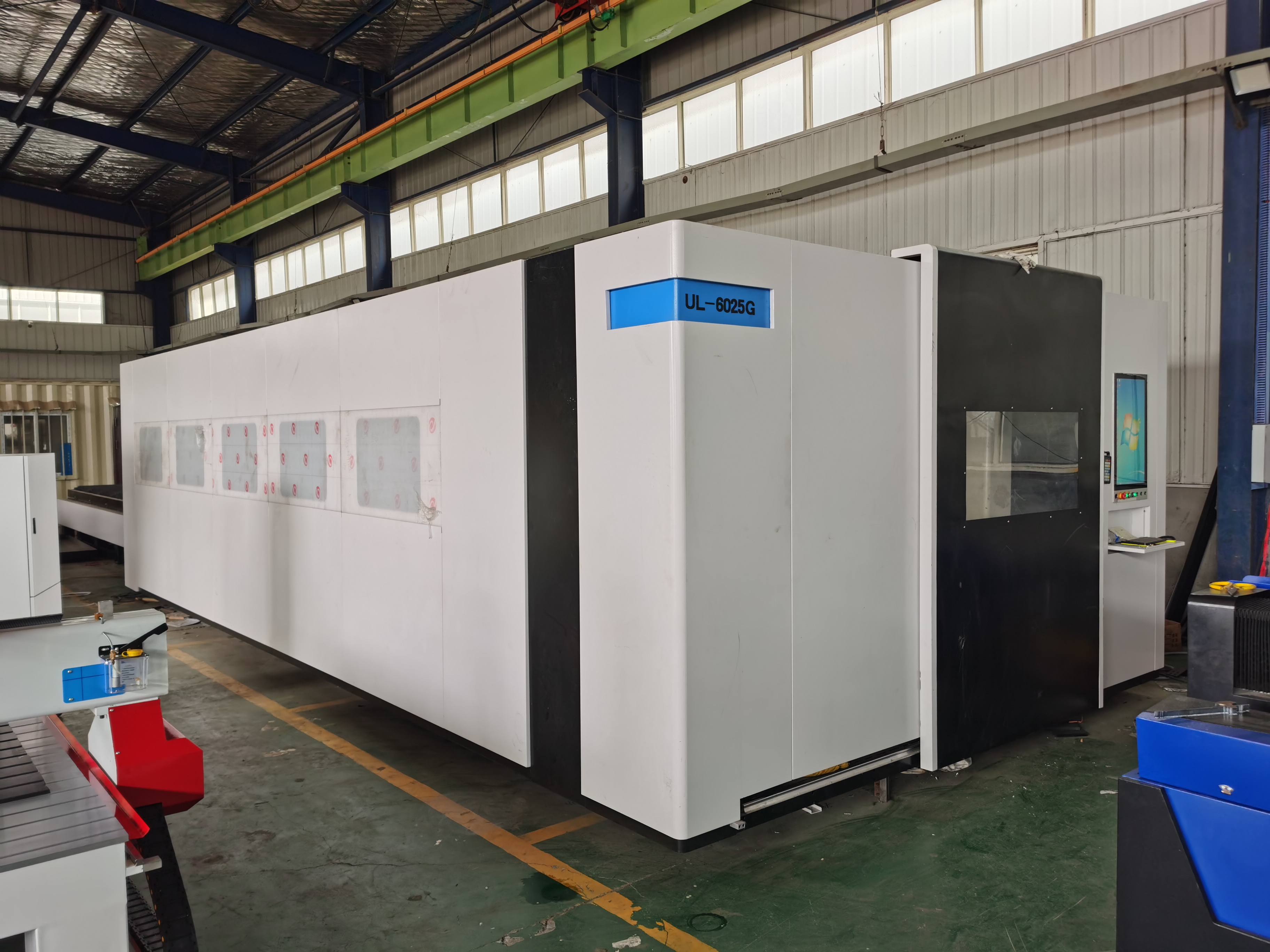

Features for full enclosed fiber laser cutting machine
More perfect structure design:
Detachable structure, can customize larger model
Function area reserved window, suitable for different configuration choice.
More heavy machine bed
High-speed operation, stable and non-quivering
Suitable for high power laser, high efficiency machining.
Stronger protection:
Whole cover structure, safer to use
Chain type transmitting mode, one key frequency conversion, more safe reloading
New shape and color:
Meet industrial needs, more protective
More perfect shape design, color matching pore in line with international standards.
Parameter for full enclosed fiber laser cutting machine
Model
|
UT-3015DH
|
UT-4015DH
|
UT-6015DH
|
UT-4020DH
|
UT-6020DH
|
Working Size
|
1500×3000mm
|
1500×4000mm
|
1500×6000mm
|
2000×4000mm
|
2000×6000mm
|
Laser medium
|
Fiber laser
|
||||
Laser power
|
1500w, 2000w, 3000w, 4000w, 6000w,12000w
|
||||
Laser source
|
IPG or Raycus
|
||||

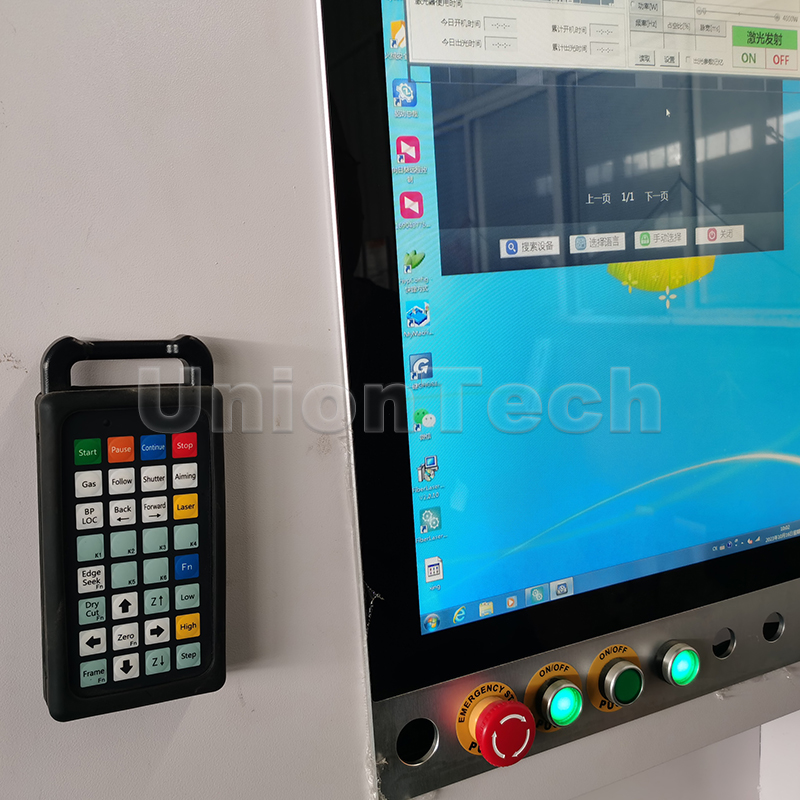

Control system
|
CYPCUT 2000
|
||||
Cutting head
|
automatic focus WSX or Raytools
|
||||
Motor and driver
|
France Schneider 2000w
|
||||
Guide rail
|
Japan THK quare linear rail (30mm width)
|
||||
Reducer
|
Japan Shimpo reducer
|
||||
Chiller
|
S&A chiller
|
||||
Wave Lenth
|
1080nm
|
||||
Min. Route Width
|
0.1mm
|
||||
Reposition Accuracy
|
± 0.05mm
|
||||
Voltage requirement
|
380V/50Hz,3P
|
||||
Running speed
|
128m/min
|
||||
Operating temperature
|
25~28C°
|
||||
Cutting thickness
|
Depending on the materials
|
